Table top Epoxy Resin & Hardener

1. Scope of use
Epoxy resin is specially used for large handicrafts, large specimens, marble slabs, etc., and other electricity
Insulation of sub-parts, moisture-proof potting, security shielding, etc.

2. Technical parameters
Main agent A curing agent B
Color: colorless and transparent
Specific weight: 1.05 0.96
Viscosity 25℃: 1000-2000CPS 150CPS

3. Conditions of use
1) Mixing ratio: A: B= 100:33 (weight ratio)
2) Volume ratio: A: B=2.7:1
3) Hardening conditions: 25℃×10H-12H or 50℃×3H (100g)
4) Usable time: 25℃×60min (100g)

4. After mixing
1) State: fluid
2) Viscosity: 100±50mPa.S
3) One time can be mixed: about 20kg
6. Curing time
1) Initial fixing time: 5-7 hours at room temperature
2) Final curing: 12 hours at room temperature
3) Curing temperature: 10℃-70℃

5. Use method
1. Working environment: Please keep the container clean,A, B components strictly according to the weight ratio, accurate weighing.
Stir well along the inner wall of the container clockwise and let stand for 3-5 minutes before use.
2. Adjust the amount of glue according to the operating time and dosage to avoid waste. When the temperature is lower than 15℃, please first change A
The glue is preheated to 30℃ and then adjusted, which is easy to operate (glue A will thicken when the temperature is low); Must be sealed after use
Drum cover to avoid product scrap due to moisture absorption.
3. When the relative humidity is greater than 85%, the surface of the cured material is easy to absorb the water in the air, forming a layer of white fog
Therefore, when the relative humidity is greater than 85%, it is not suitable for normal temperature curing, and it is recommended to use temperature curing.

6. Properties after hardening
1) Hardness: shore D 85
2) Bending strength: Kg/mm2 23
3) Thermal deformation temperature: ℃ 80
4) Water absorption: % < 0.1
5) Compressive strength: Kg/mm2 9.4

7. Storage
1) Are you afraid of freezing? Yes
2) Affected by moisture: resin is not affected by moisture curing agent requires moisture-proof gas
3) Recommended storage temperature: 15-25℃ (not lower than 10℃, not higher than 50℃)
4) Shelf life: 6 months (original packaging)
5) Validity: 12 months (original packaging)

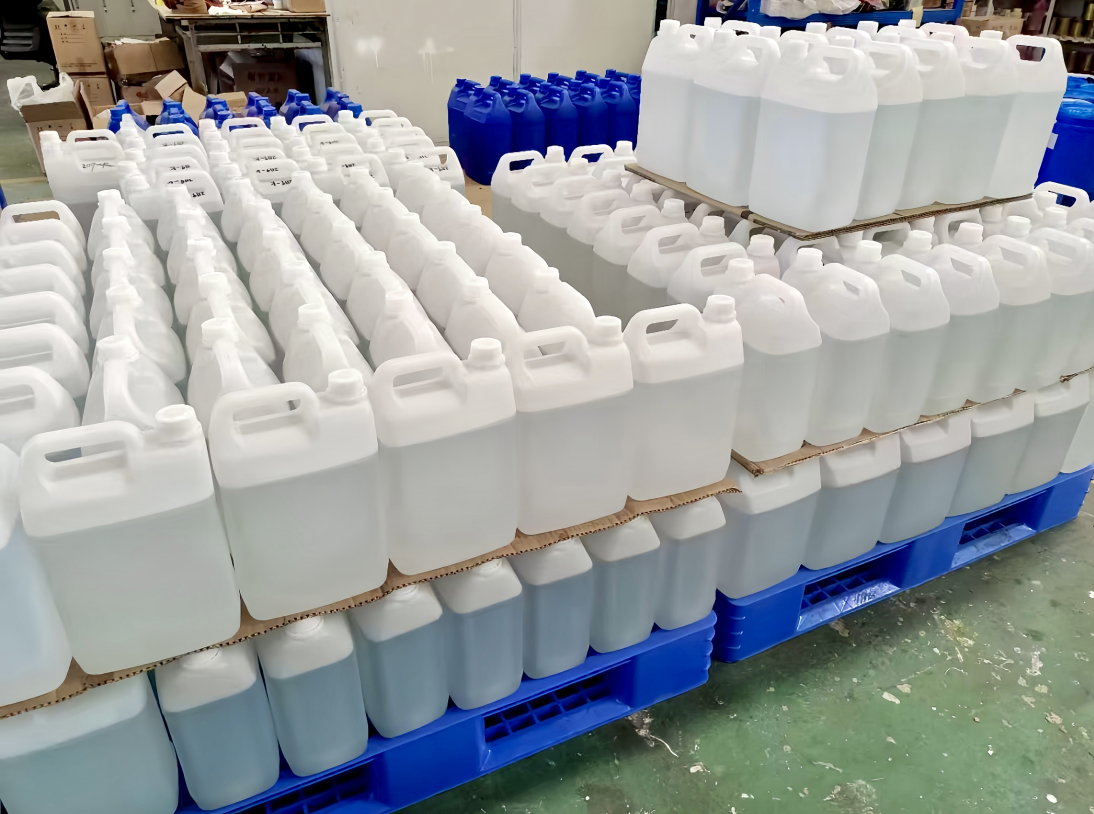

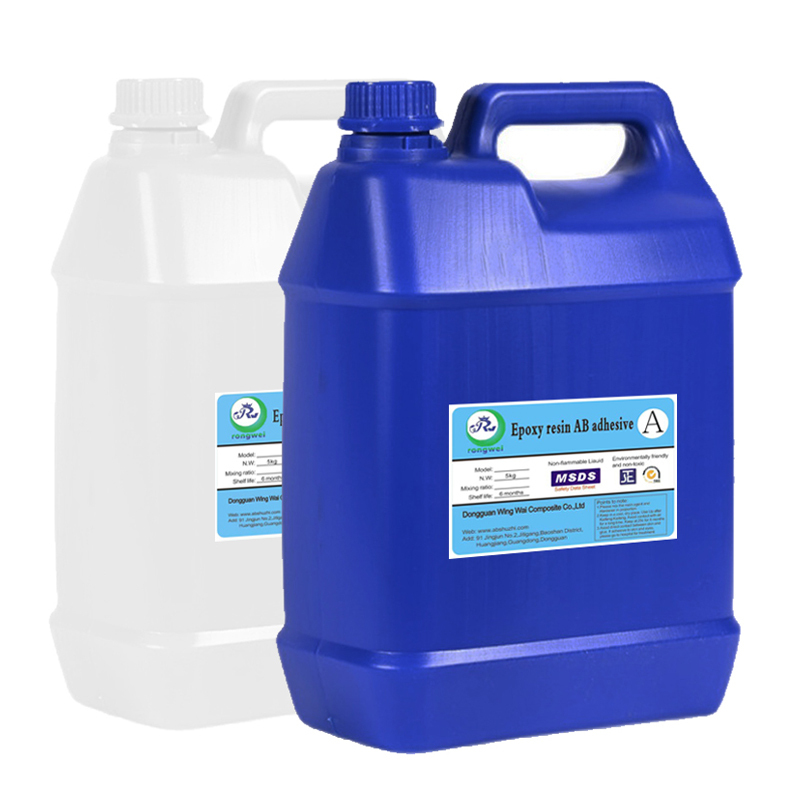

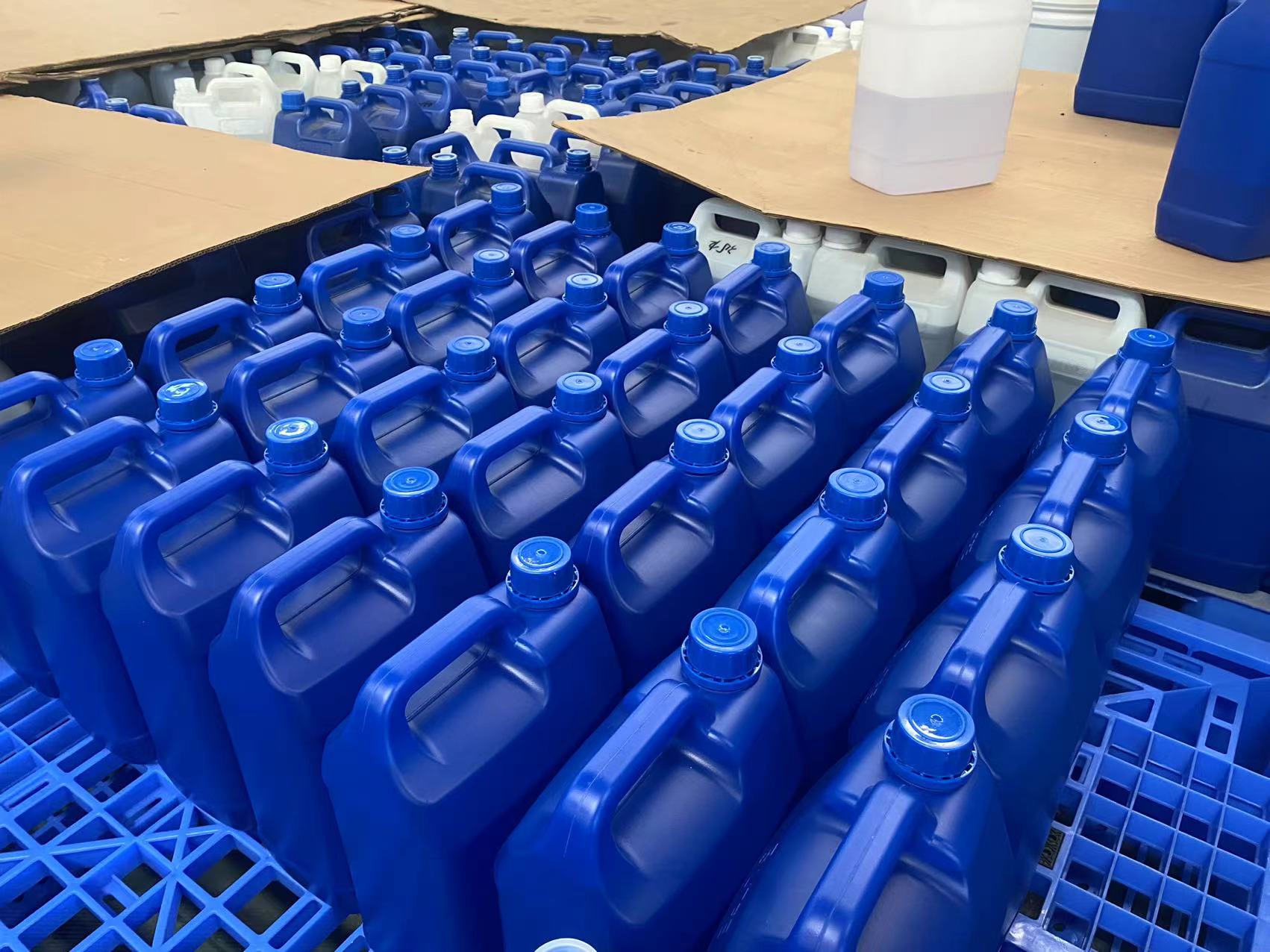

5) Packaging: 5Kg/15kg/30kg (bottle)

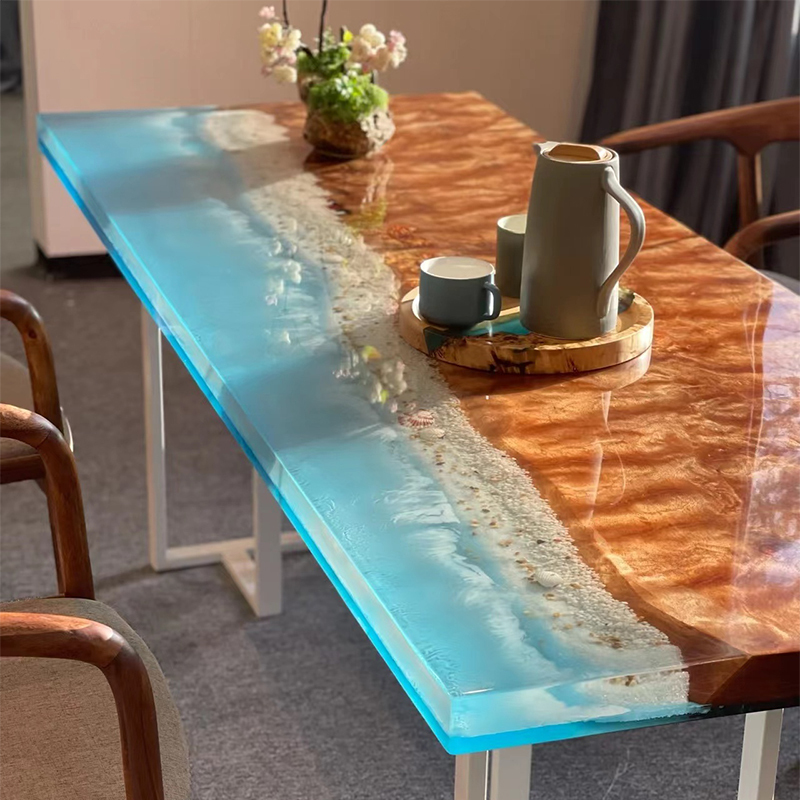

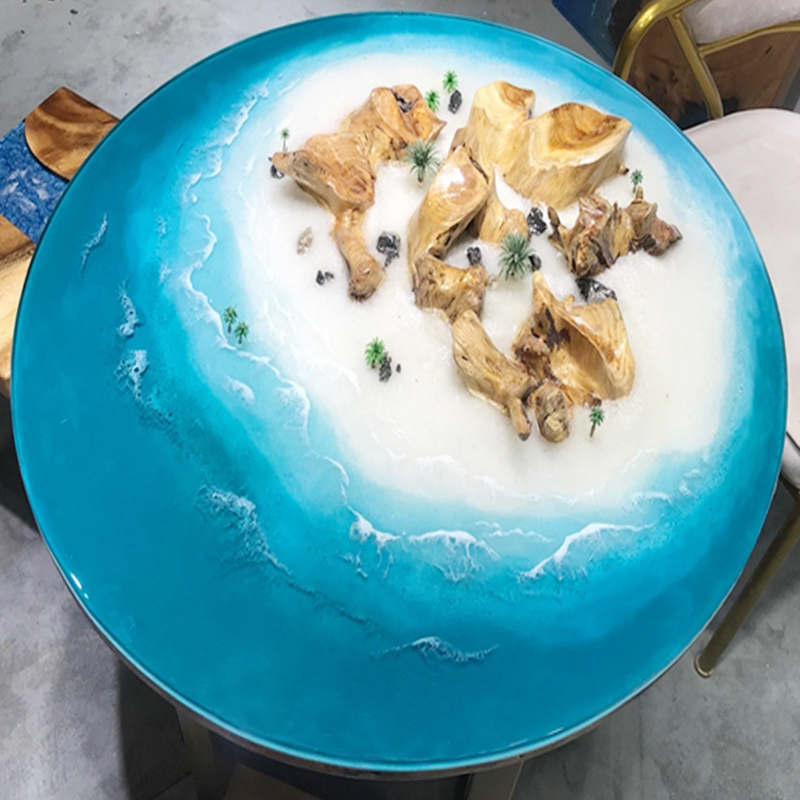

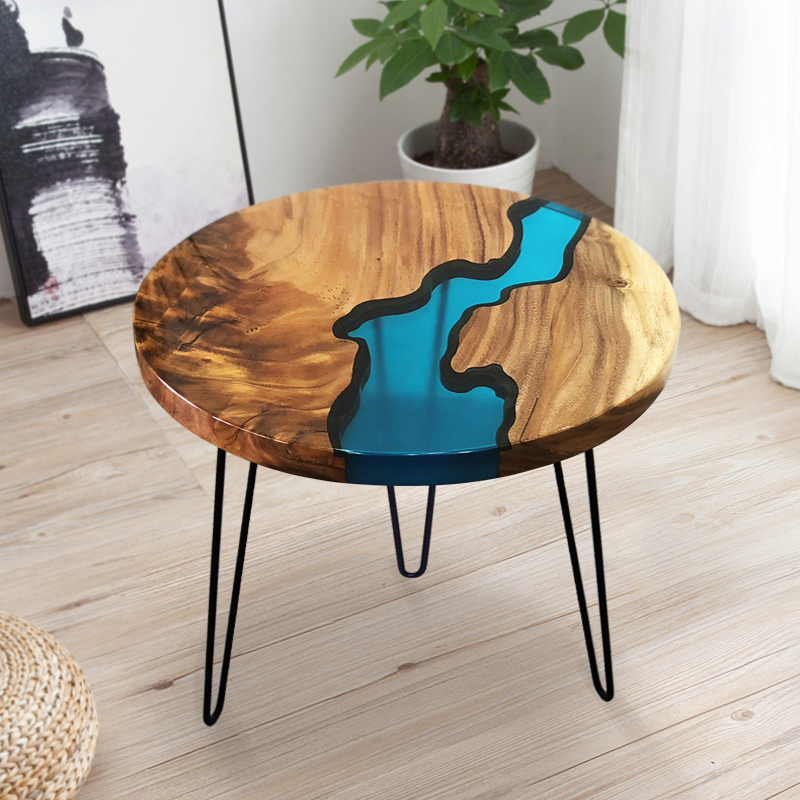

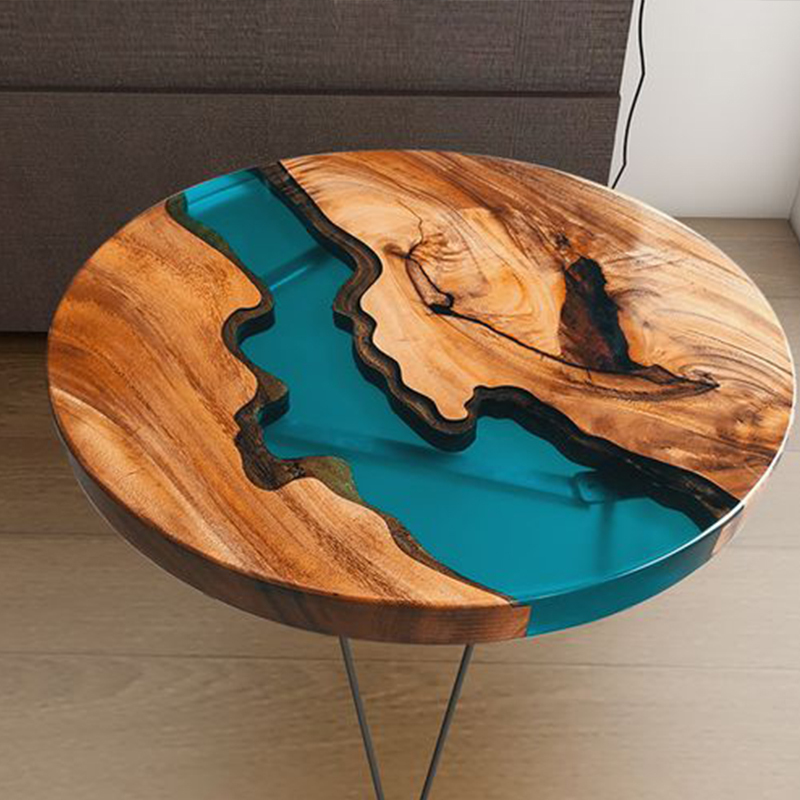

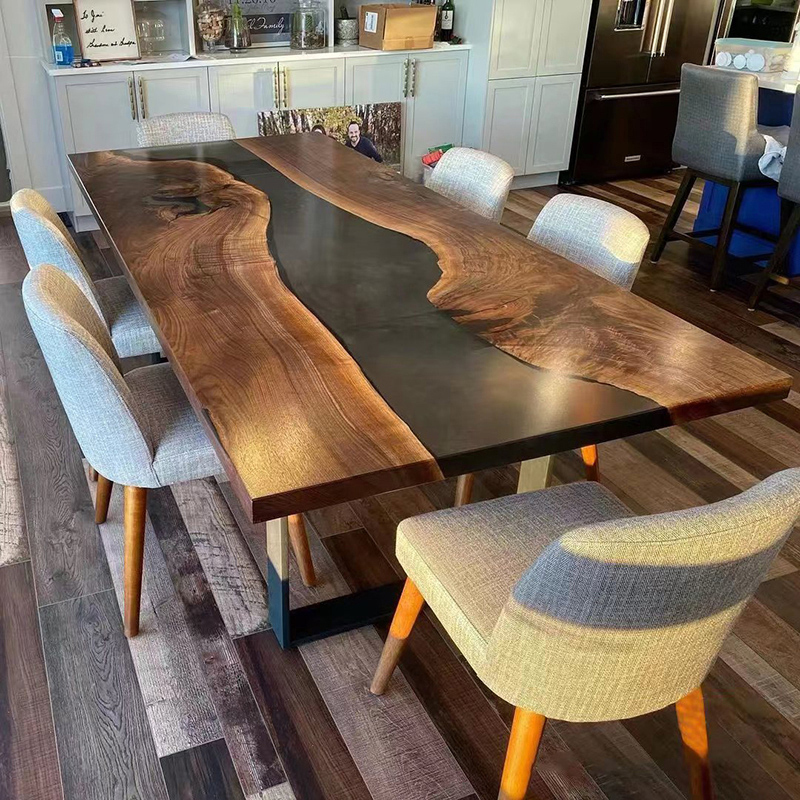

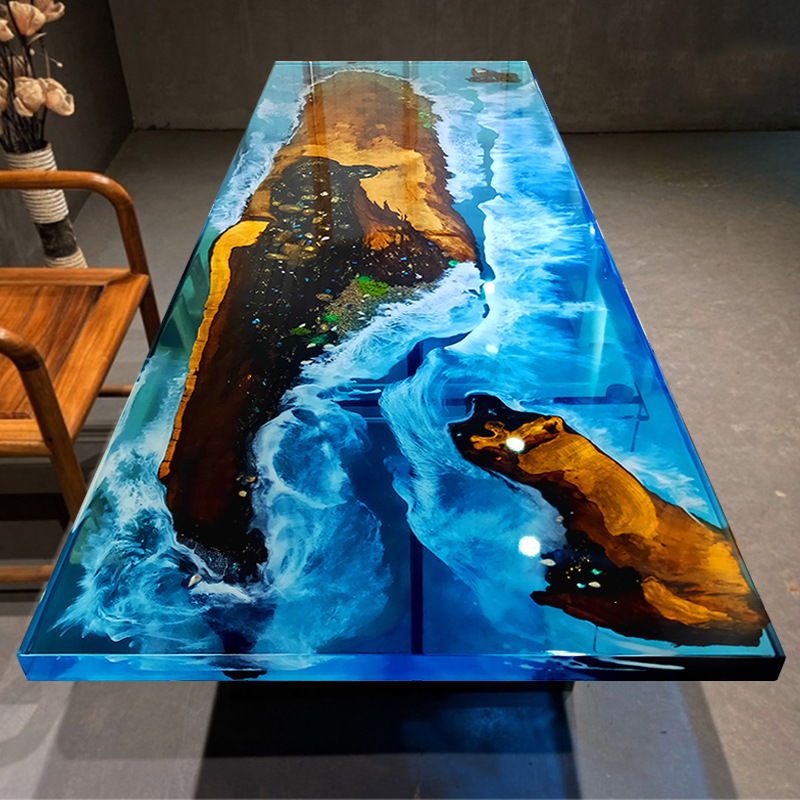

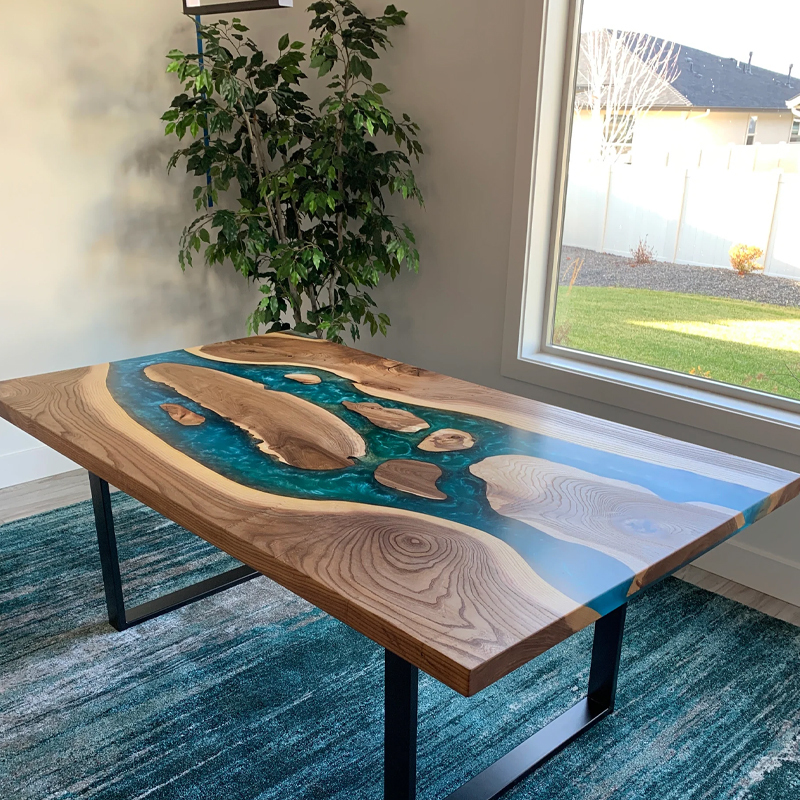

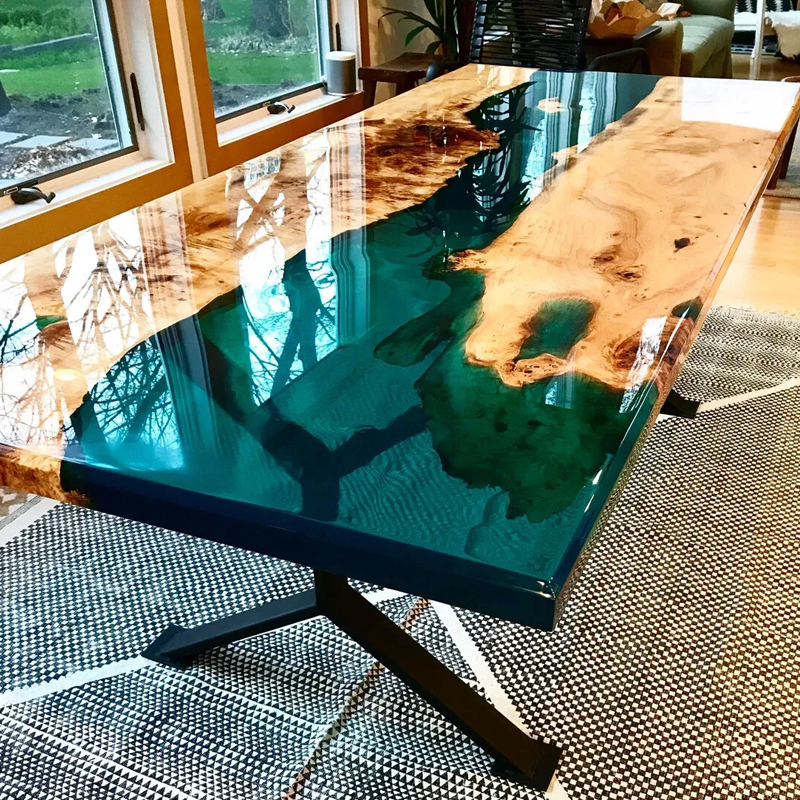

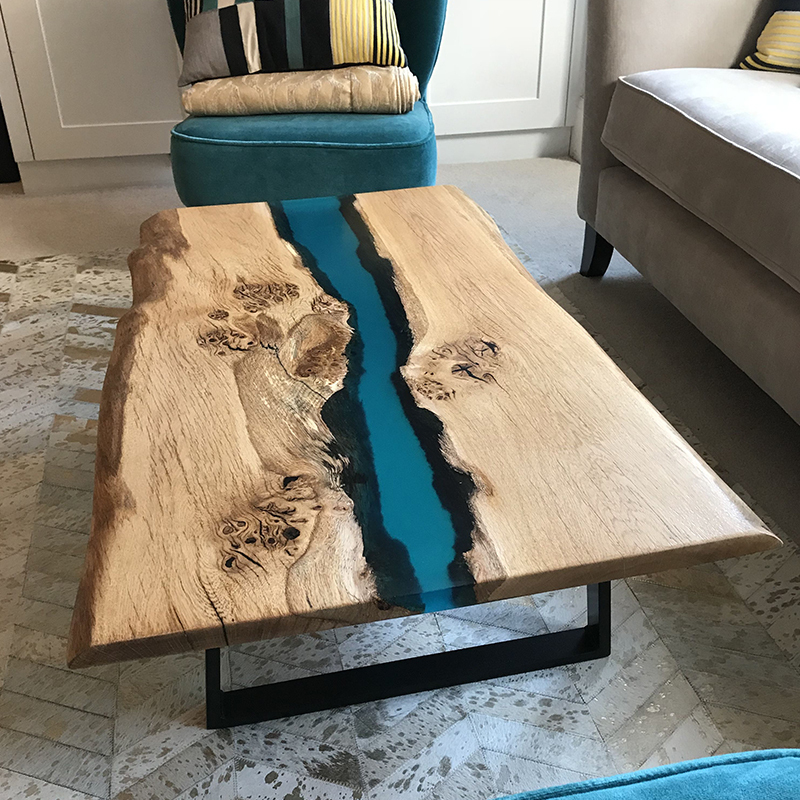

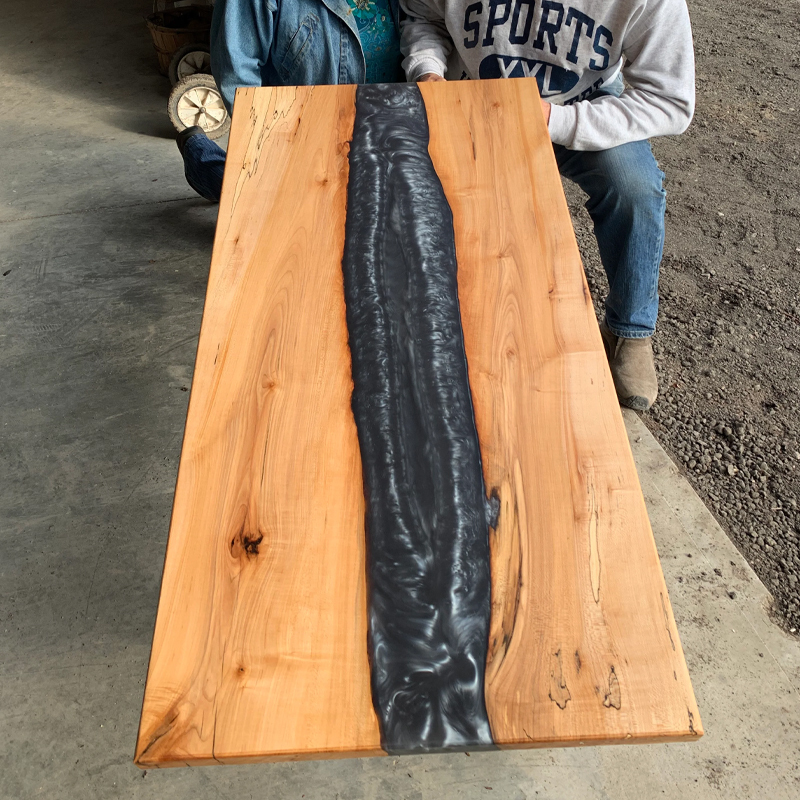

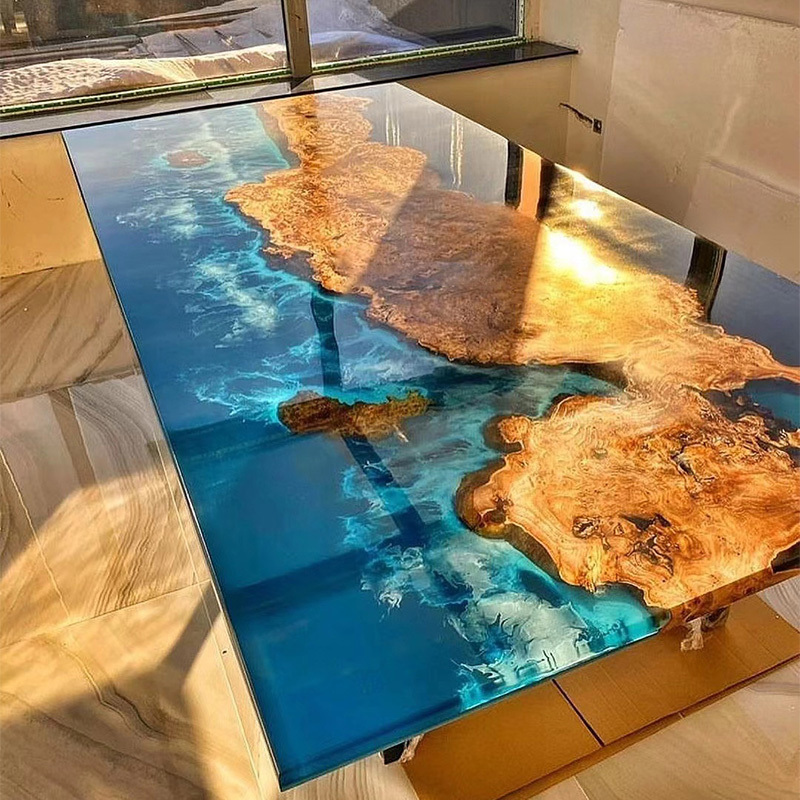

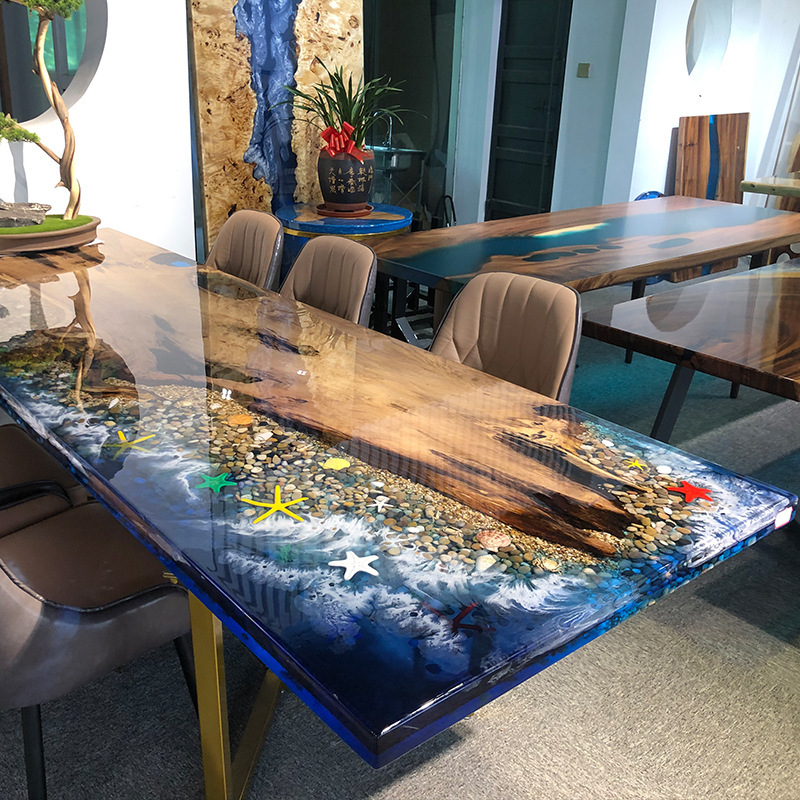

Specific Uses For Product Craft

Material Epoxy Resin Compatible Material ：
✔ Porcelain,✔ Wood,✔ Aluminum,✔ Glass fiber,✔ Glass,✔ Ceramics,✔ Plastic,✔ Carbon fiber,✔ Concrete,✔ Metal,
✔ Stones,✔ acrylic acid✔ porcelain.



The above performance data are typical data measured in a laboratory environment with a temperature of 25 ° C and a humidity of 70%

For customer reference.
